A100-T50-S2-C DN50 2 inch NPT thread NSF61-G approved CR5 01 white actuator motorized valve Telephone line

Min.Order Quantity: 1 Piece/Pieces
Supply Ability: 5000 Piece/Pieces per Month
Port: ningbo,Shanghai
Payment : T/T, Paypal

Service On Line

Tonhe is a china manufacturer, we focus on mini motorized valve(1/4" - 2"), which are CE, RoHS, IP67 approved, and SS valve NSF61 approved. Our company also SGS ISO9001 approved.
A100 valve actuator 10NM torque NSF61-G approved， suit for drinking water.

Technical Parameters:

Valve size	NPT 2" NSF61-G approved
Maximum working pressure	1.5 MPa
Circulation medium	Fluid, air
Rated voltage	DC12v, DC24v
Wiring control methods	CR2 01, CR5 01
Working current	≤1A
Open/close time	≤15S
Life time	50000 times
Valve Body material	Stainless Steel NSF approved
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90°
Max. torque force	15Nm
Cable Length	0.5m,1.5m（Optional） Telephone line
Environment temperature	-15℃～50℃
Liquid temperature	2℃～120℃
Manual override	No
Indicator	Yes
Protection class	IP67

DN50 2" motorized valve feature

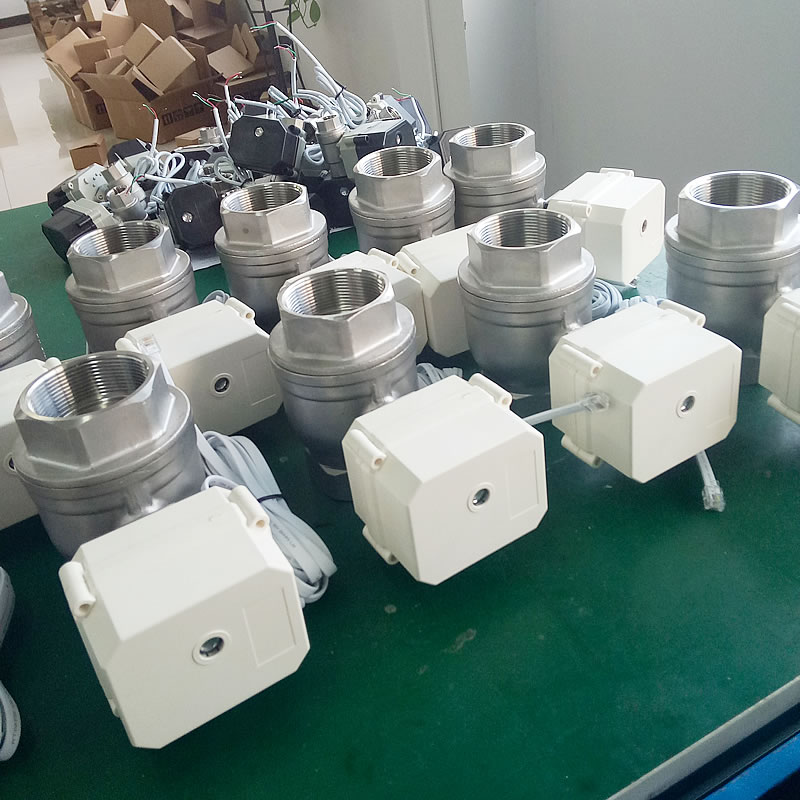

DN50 2" SS304 motorized valve, torque:10-20NM, valve actuator color can be gray or black color or white,
we are the manufacture, so we also can custom-made terminal connector and logo for you, this type motorized valve is NSF approved, suit for drinking water, especially suit for Amecrica market.

Assemble drawing

A100 actuator drawing
2 inch motorized valve

Tonhe A100 2" Motorized valve drawing

Wiring diagram

CR2 01 Wiring Diagram ( 2 wires control )

·RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position .
·BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
﹡Suitable Working Voltage: DC5V/DC12V/DC24V
﹡Exceeding the working voltage is forbidden

CR5 01 Wiring diagram ( with feedback signal)

1. RD connect with positive, the BK connect with negative，the valve closed, the actuator automatically power off after in place .
2 BK connect with positive, the RD connect with negative，the valve open, the actuator automatically power off after in place .
3 GR & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully
Suitable Working Voltage:：DC5V/DC12V/DC24V
Exceeding the working voltage is forbidden

CR5 02 Wiring diagram ( with feedback signal)

·When SW is closed , the valve open. the actuator automatically power off after in place
·When SW is open, the valve closed, the actuator automatically power off after in place
﹡BL & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully
﹡Suitable Working Voltage: AC/DC9-24V, AC/DC9-35V, AC/DC110V-230V
﹡Exceeding the working voltage is forbidden

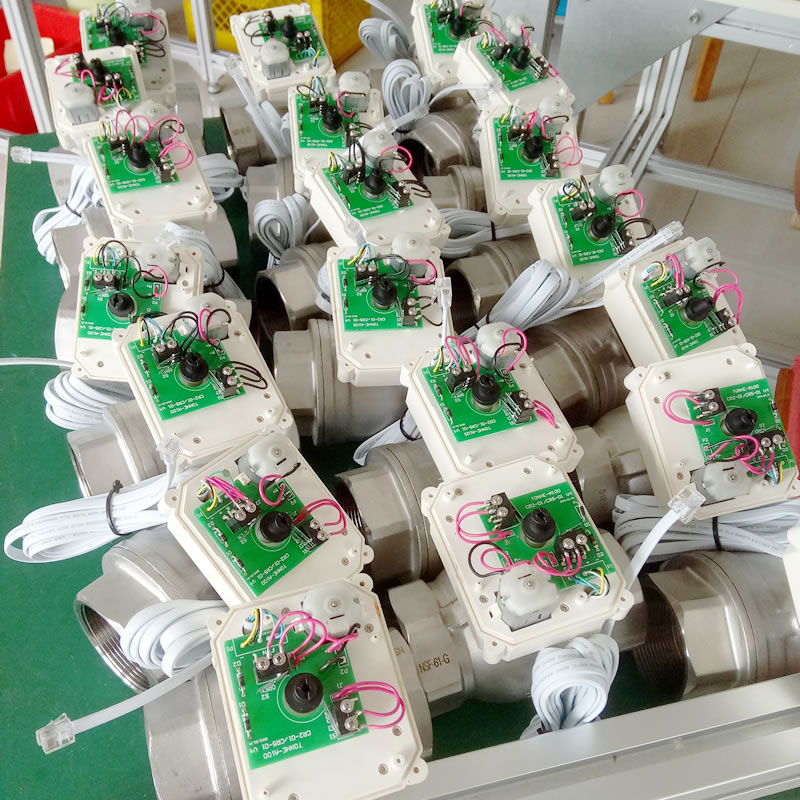

A100 Valve Actuator

Our electronic components are basically imported, all choose the better quality of the accessories, such as switches, we use better quality Taiwan switch.

Our electronic components are basically imported, all choose the better quality of the accessories, such as switches, we use better quality Taiwan switch.

When you inquiry the valve, pls confirm the detail technical data :

1)valve size
2)material, brass or stainless steel or PVC?
3)working voltage
4)wiring diagram
5)thread BSP or NPT?
6)quantity?
7)cable length, 0.5m is OK for you?
