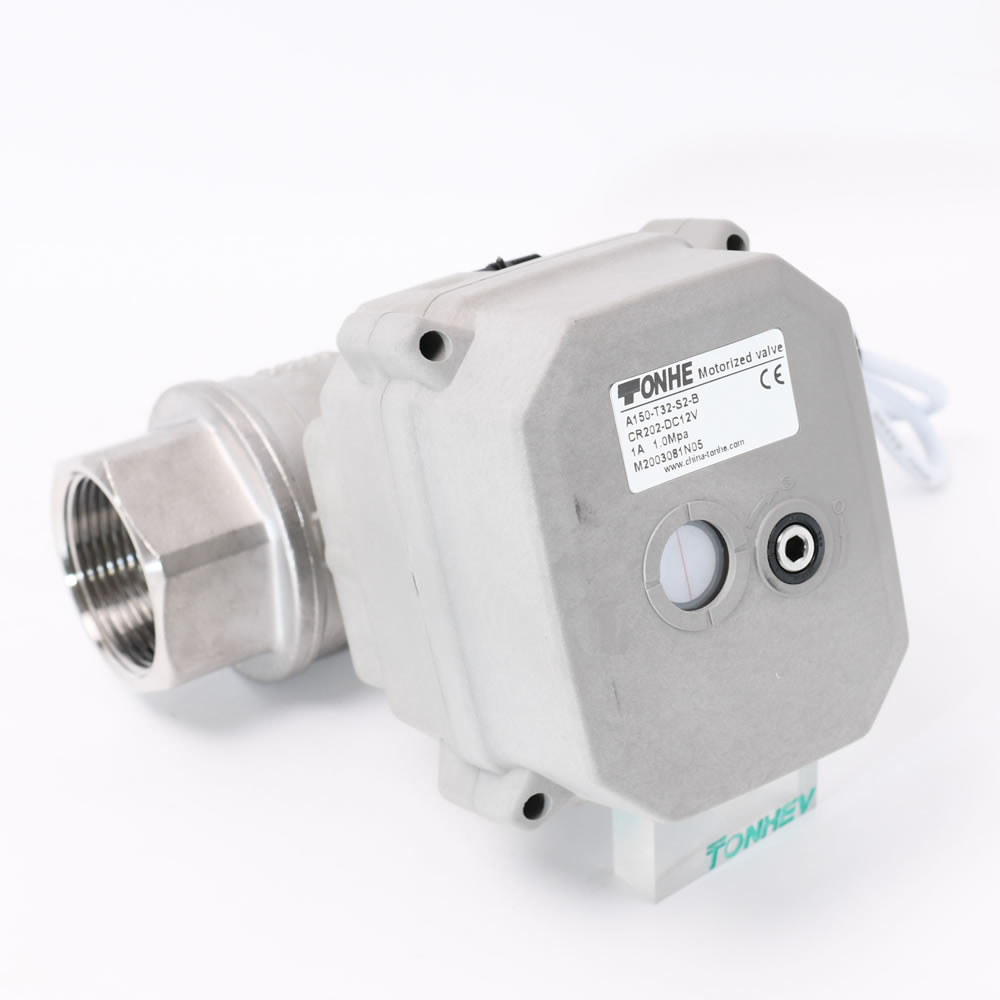

A150 stainless steel motorized ball valve 120v normally closed

A150 stainless steel motorized ball valve 120v normally closed
Min.Order Quantity: 1 Piece/Pieces
Supply Ability: 5000 Piece/Pieces per Month
Port: ningbo,Shanghai
Payment : T/T, Paypal


Service On Line
Tonhe is a china manufacturer, we focus on mini motorized valve(1/4" - 2"), which are CE, RoHS, IP67 approved, and SS valve NSF61 approved. Our company also SGS ISO9001 approved.

A150 motorized valve with manual override new feature

motorized valve with manual overridemotorized valve with manual override

Technical Parameters:

Valve size BSP/NPT 1/2" 3/4" 1"
Maximum working pressure 1.5 MPa
Circulation medium Fluid, air
Rated voltage DC12v, DC24v, DC9-24v,AC110-230V
Wiring control methods CR2 01,CR2 02, CR2 03, CR3 03,CR3 05, CR5 01, CR5 02,CR5 03,CR7 03, CR7 06
Working current ≤1.5A
Open/close time ≤11S
Life time 50000 times
Valve Body material Stainless Steel
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 15Nm
Cable Length 0.5m,1.5m(Optional)
Environment temperature -15℃~50℃
Liquid temperature 2℃~120℃
Manual override Yes
Indicator Yes
Protection class IP67

Motorized valve Data sheet + Assemble drawing

A150 stainless stell motorized valve data sheet + 2D drawing

Wiring diagram

CR2 01 Wiring Diagram ( 2 wires control )

motorized valve wire control CR201
·RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position .
·BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
﹡Suitable Working Voltage: DC5V/DC12V/DC24V
﹡Exceeding the working voltage is forbidden

CR2 02 Wiring Diagram ( 2 wires control – Spring return in case of the power is failure)

motorized valve wire control CR202
·When SW is closed , the valve open. the actuator automatically power off after in place
·When SW is open, the valve closed, the actuator automatically power off after in place
﹡Suitable Working Voltage: AC/DC9-24V,AC/DC110V-230V,AC/DC9-35V(with manual override).
﹡Exceeding the working voltage is forbidden

CR301 Wiring Diagram (3 wires control)

motorized valve wire control CR301
·RD & GR connect with positive, BK connect with negative
·When OPEN( RD) & SW connected , the valve open, the actuator automatically power off after in place , valve remains fully open position
·When CLOSE(GR) & SW connected, the valve closed, the actuator automatically power off after in place, valve remains fully closed position.
﹡Suitable Working Voltage: DC12V, DC24V,AC24v,DC12v-24v
﹡Exceeding the working voltage is forbidden

CR3 03 Wiring Diagram (3 wires control)

motorized valve wire control CR303
·RD& GR connect with positive, the BK connect with negative
·SW CLOSED, the valve OPEN, the actuator automatically power off after in place
·SW OPEN, the valve CLOSED, the actuator automatically power off after in place.
﹡Suitable Working Voltage: AC/DC9-35V/AC110-230V
﹡Exceeding the working voltage is forbidden

CR5 01 Wiring diagram ( with feedback signal)

motorized valve wire control CR501
1. RD connect with positive, the BK connect with negative,the valve closed, the actuator automatically power off after in place .
2 BK connect with positive, the RD connect with negative,the valve open, the actuator automatically power off after in place .
3 GR & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully
Suitable Working Voltage::DC5V/DC12V/DC24V
Exceeding the working voltage is forbidden

CR5 02 Wiring diagram ( with feedback signal)

motorized valve wire control CR502
·When SW is closed , the valve open. the actuator automatically power off after in place
·When SW is open, the valve closed, the actuator automatically power off after in place
﹡BL & WT are connect when the valve open fully, YW & WT are connect when the valve closed fully
﹡Suitable Working Voltage: AC/DC9-24V, AC/DC9-35V, AC/DC110V-230V
﹡Exceeding the working voltage is forbidden

CR7 02 Wiring Diagram ( 7 wires control with feedback signal )

motorized valve wire control CR702
1.RD & GR connect with positive, the BK connect with negative
2. When RD & SW connected, the valve open, the actuator automatically power off after the valve fully open.
3. When GR & SW connected, the valve closed, the actuator automatically power off after the valve fully closed,.
4. BL & GY connect with the valve's fully open signal wiring
5. YW & WT connect with the valve's fully closed signal wiring
﹡Suitable Working Voltage: DC12V, DC24V,AC24v,DC12v-24v
﹡Exceeding the working voltage is forbidden
Feedback wire capacity:
1. Voltage: DC0-35v; 2. Maximum current: 0.4A

Valve Actuator gear

our A20 actuator gear is brass(biggest gear) + stainless steel



Our electronic components are basically imported, all choose the better quality of the accessories, such as switches, we use better quality Taiwan switch.

When you inquiry the valve, pls confirm the detail technical data :

1)valve size
2)material, stainless steel or UPVC ?
3)working voltage
4)wiring diagram
5)thread BSP or NPT?
6)quantity?
7)cable length, 0.5m is OK for you?
8)Water pressure?
9)if you need manual override?
