Min.Order Quantity: 1 Piece/Pieces
Supply Ability: 5000 Piece/Pieces per Month
Port: ningbo,Shanghai
Payment : T/T, Paypal


Service On Line

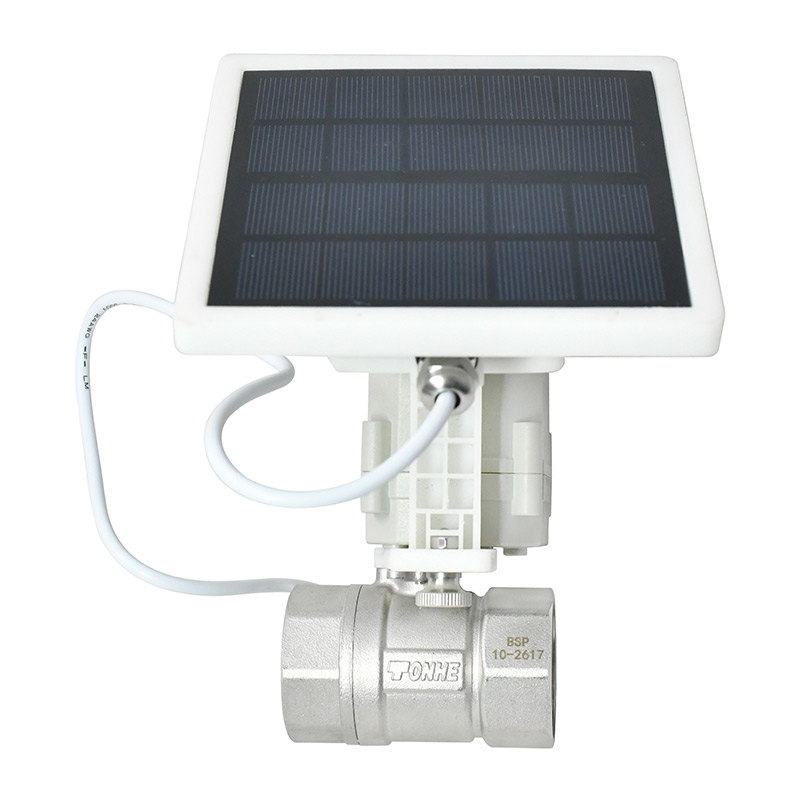

Tonhe is a china manufacturer, we focus on mini motorized valve(1/4" - 2"), which are CE, RoHS, IP67 approved, and SS valve NSF61 approved. Our company also SGS ISO9001 approved.

Technical Parameters:

Valve size	NPT/BSP 1/4" 3/8” 1/2” 3/4” 1”  1 1/4" (Optional )
Maximum working pressure	1.0MPa
Circulation medium	Fluid, air,Water
Rated voltage	DC5V
Line Control Method	WIFI “Smart Life” APP
Open/close time	≤5S/90°
Life time	70000 times
Valve material	Brass SS304 SS316（Optional)
Actuator material	PPO Engineering Plastics
Sealing material	FKM & PTFE
Actuator rotation	90°
Max. torque force	3NM
Cable Length	0.5m
Environment temperature	-15℃～60℃
Liquid temperature	2℃～90℃
Manual override	No
Indicator	Yes
Protection class	IP67
Product certificate	ROHS
Company system certification	ISO 9001:2015
Locked-roto Current	500mA

Instructions
